HOUSE CAPACITY
HOUSE CAPACITYFull House Round - 13,000
Half House - 6,000
Front of House - 4,000
TICKETING / SEATING
TICKETS: Ticketmaster
SEATING: Reserved or GA with open floor (promoter option)
DOORS: Reserved - 1 hour; GA - 1.5 hours
CURFEW: Midnight
SETTLEMENT: Evening of event at agreed upon time
CASH ADVANCE: Available with advance notice from Ticket Office at 260.483.1111
STAFFING
Stagehands, Riggers, Security, Runners, Production Assistants
BARRICADE
176’ of blow thru concert barricade with 4 inside and 4 outside corners available
CATERING
House Caterer: ARAMARK
Renee Ray, Catering Sales Manager
ARENA CONTACT INFORMATION
Executive Vice President & General Manager - Randy Brown - 260.482.9502
Vice President of Sales & COO - Garnett Miller - 260.482.9502
Vice President of Operations - Bryan Christie - 260-480-2127
Asst. Operations Manager - Eric Lonsbury - 260.480.2172
Ticket Office Manager - Michele Remenschneider - 260.480.2176
Event Marketing & Media - Nathan Dennison - 260.480.3710
Concessions / Novelty / Merchandise - Ed Davidson - 260.484-6486
Lead/Stewart Local 146 - John Hinen - 260.484.3288
Security/ESG Security - Frank Dunno - 260.480.2188
24-Hour Emergency Contact - Bryan Christie - 260.480.2164 or 260.414.9005
BASIC TYPE OF HALL
Multi-purpose, oval shaped floor.
Ice from October-May
DOCKS - 2 standard loading docks
Trucks can stay at dock
75' push - up stage center
Ramp Off Truck - YES
Direct Access To Floor
Marshalling Area / Bus Parking - 400 amps of Shore Power Available
Additional Truck Parking - adjoining to dock lot

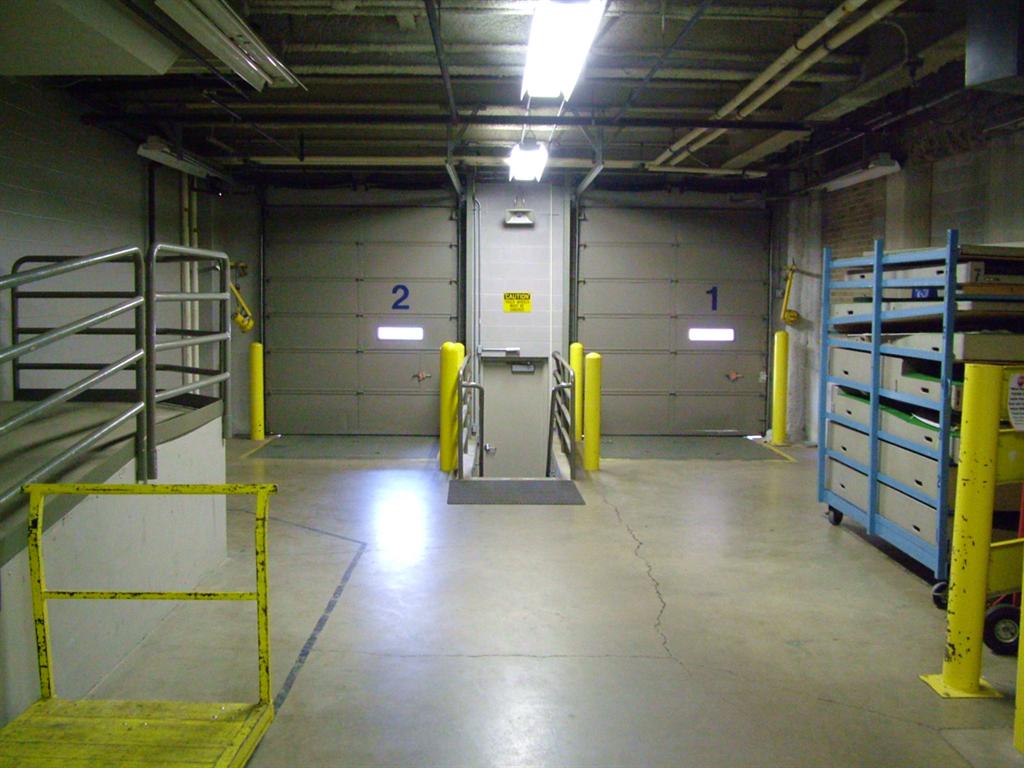

ARENA LOADING DOCK PHOTOS
FLOOR LOAD
250 lbs per sq. ft.
Rigging grid rated for 125,000 pounds
NOTE: Grid is at 90' and all points are pulled from ground. The most efficient call is 1Up for every 1Down for Load In. You can cut down to 2Up for every 1Down for Load Out.
RISERS
Available from 4" to 48"
SHORE POWER
(1) 200amp, 3ph, 208v
(2) 100amp, 3ph, 208v
All shore power available at Docks 1 & 2
Up Stage Center - 20' (2) 600 amp 3ph, (1) 200 amp 3ph
Down Stage Right - 30' (1) 400 amp 3ph, (1) 200 amp 3ph
Down Stage Left - 30' (1) 200 amp 3ph, (1) 400 amp 3ph
Building has 100' of 400 amp and 200 amp feeder if needed
House electrician on site
Stageright Staging
Maximum Size - 80' x 40'
Height - 4' to 6'
Weight Limit - 125 pounds per square foot
Steps - 4
Handrails - YES
Toe Rail - YES
Skirting - YES
Barricade - Conan - 80' with 32' of blow through
WINGS
16' x 24' available in-house
Xenon Gladiators (10) above on fixed platforms
Xenon Super Troupers (2) above on fixed platforms
Available for alternate locations - Xenon Super Troupers (2) and Lycian 400 (2)
Available at all spot locations
Dry line hook up location Up Stage Center
HOUSE LIGHTS
Location in Press Box above Section 605 (House operates house lights)
House light panel computer controlled in P.A. Booth
FORKLIFTS
(1) Nissan 7000#, 12' reach, fork extensions, gas
(3) Nissan 5000#, 12' reach, fork extensions, gas
(1) Nissan 3000#, 12' reach, gas
DRESSING ROOMS
A - 180 square feet (carpet)
B - 125 square feet (carpet)
C - 450 square feet (carpet)
D - 500 square feet (carpet)
E - 760 square feet (carpet)
F - 551 square fee (carpet)
SHOW OFFICE
Front Room - 200 square feet
Back Room - 108 square feet
Additional Rooms - Team Rooms 3 & 4 (center of house SL)
PYRO/HAZE
Pyro may be used in the facility. Copy of license and details of pyro used in show must be supplied to Operations Manager at least two (2) weeks prior to show for Fire Marshal approval. You must notify house prior to using any Pyro or Haze, so they can zone out the fire suppression system.
ARENA LEVELS
Event/100 Level 200 Level
Premium Seating 300/400/500 Level 600 Level
